Shure MXA310 | Microphones

Audio Capture / DSP

• Up to four simultaneous polar patterns including the innovative “toroid” pattern, capturing audio from table level while rejecting unwanted overhead artifacts (additional patterns include Omnidirectional, Cardioid, Supercardioid, Hypercardioid, and Bidirectional—all steerable to any angle in 15 degree increments)
• Shure DSP Utilities:
  • Steerable Coverage Technology
  • Automatic Mixing
  • 4 Band C/S PEQ assignable to any one channel at a time

Software Control

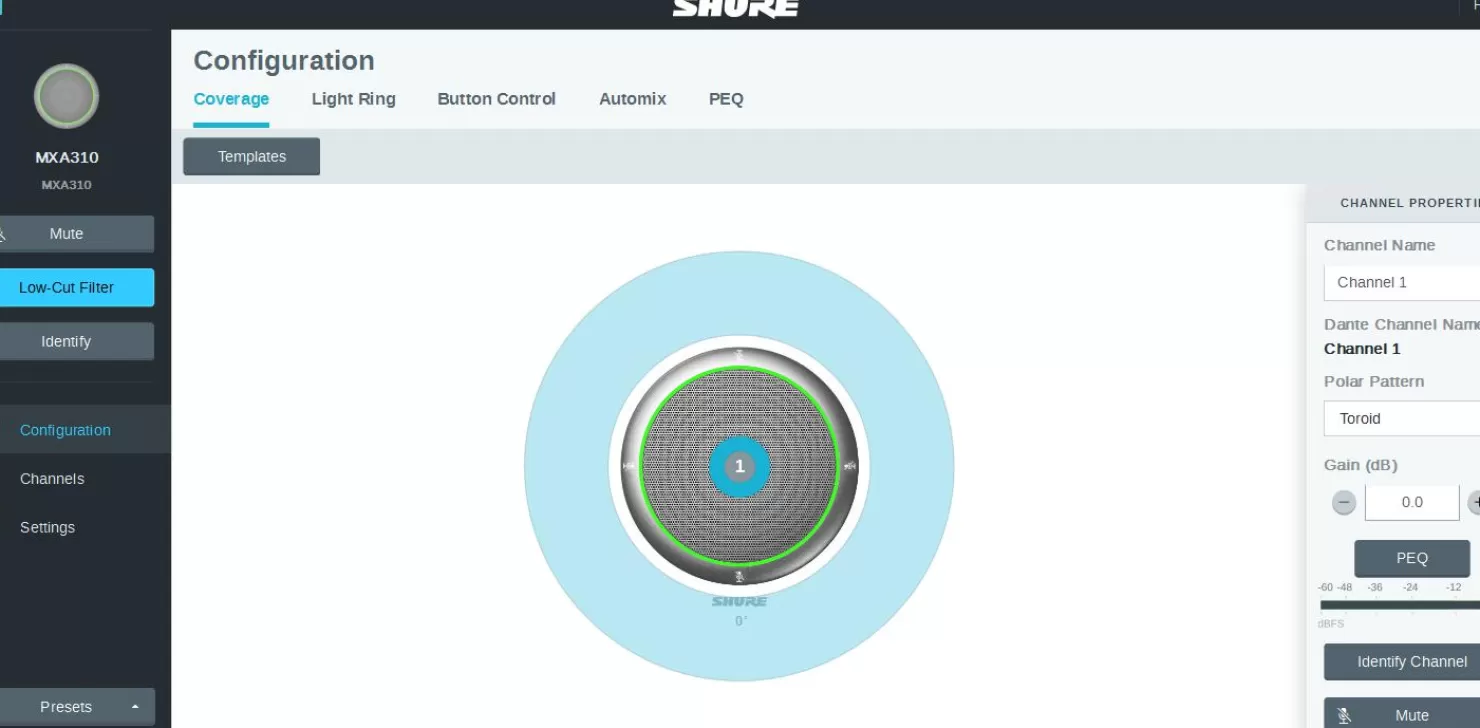

• Browser-based control software that features a simple yet smart interface showing templates and varying polar patterns for all device parameters
• Stores 10 presets

Connectivity

• Dante Audio Networking, standard PoE (class 0), and Control carried on single Ethernet cable
• Control strings for third-party preset controllers including Crestron and AMX

Hardware / Installation

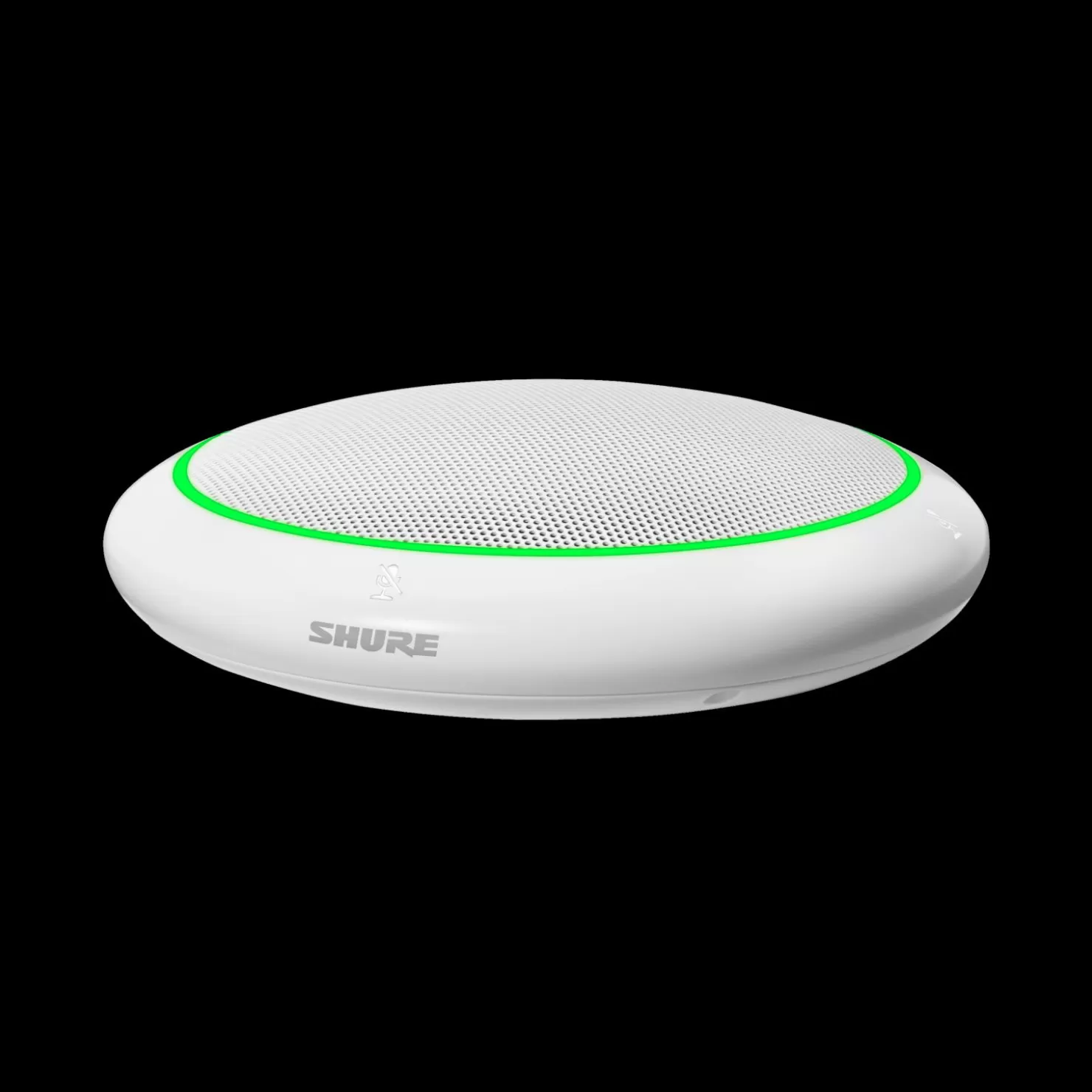

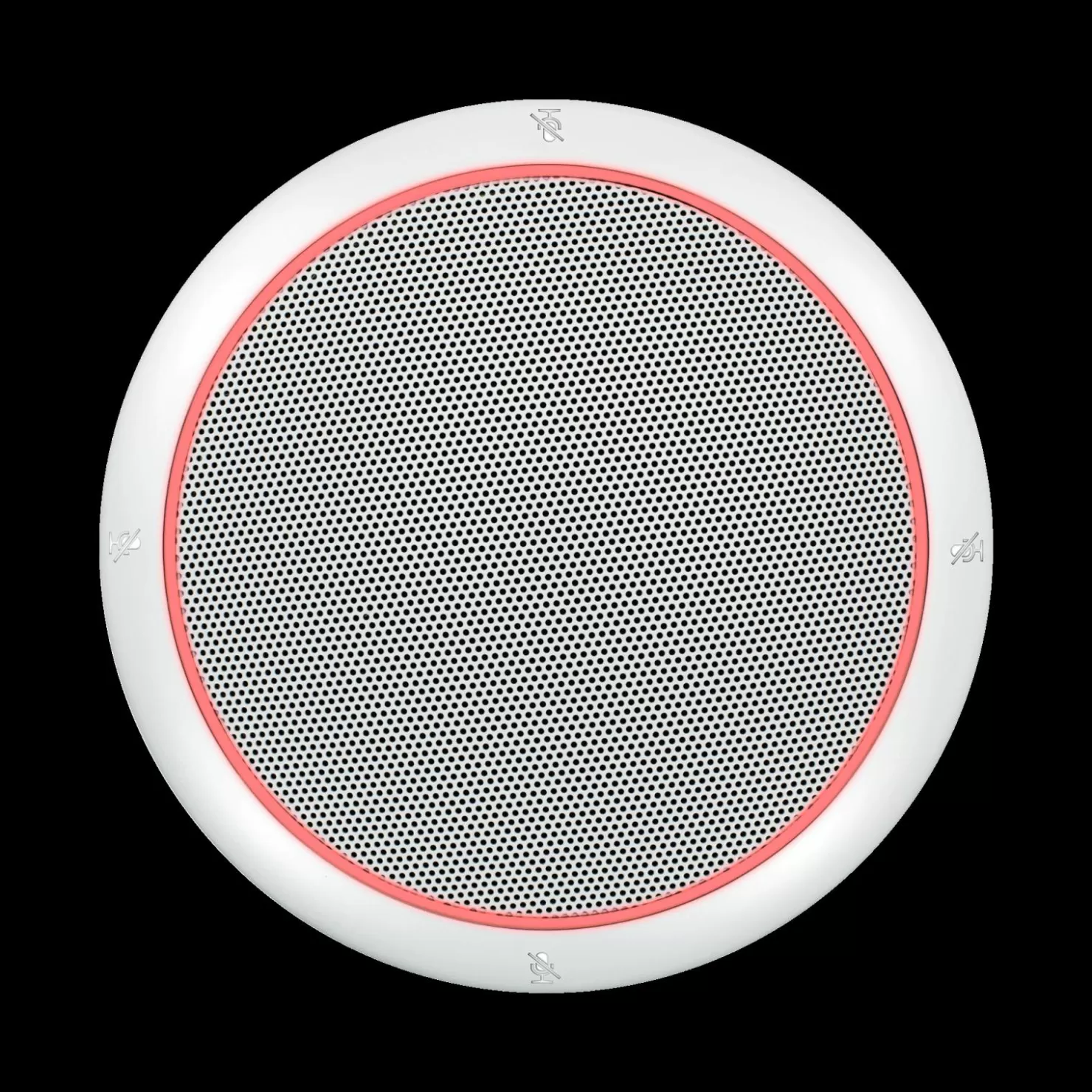

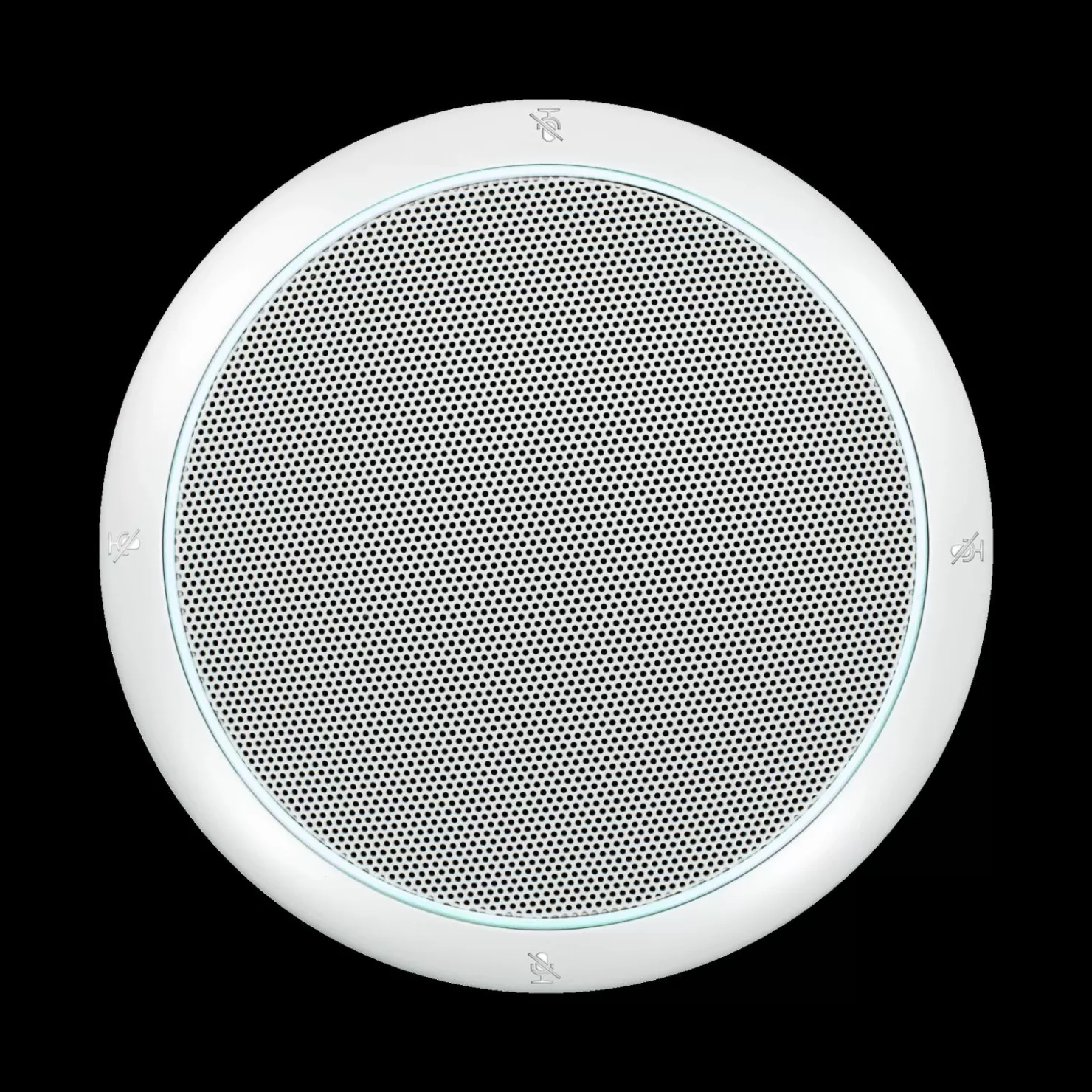

• Configurable multi-color LED

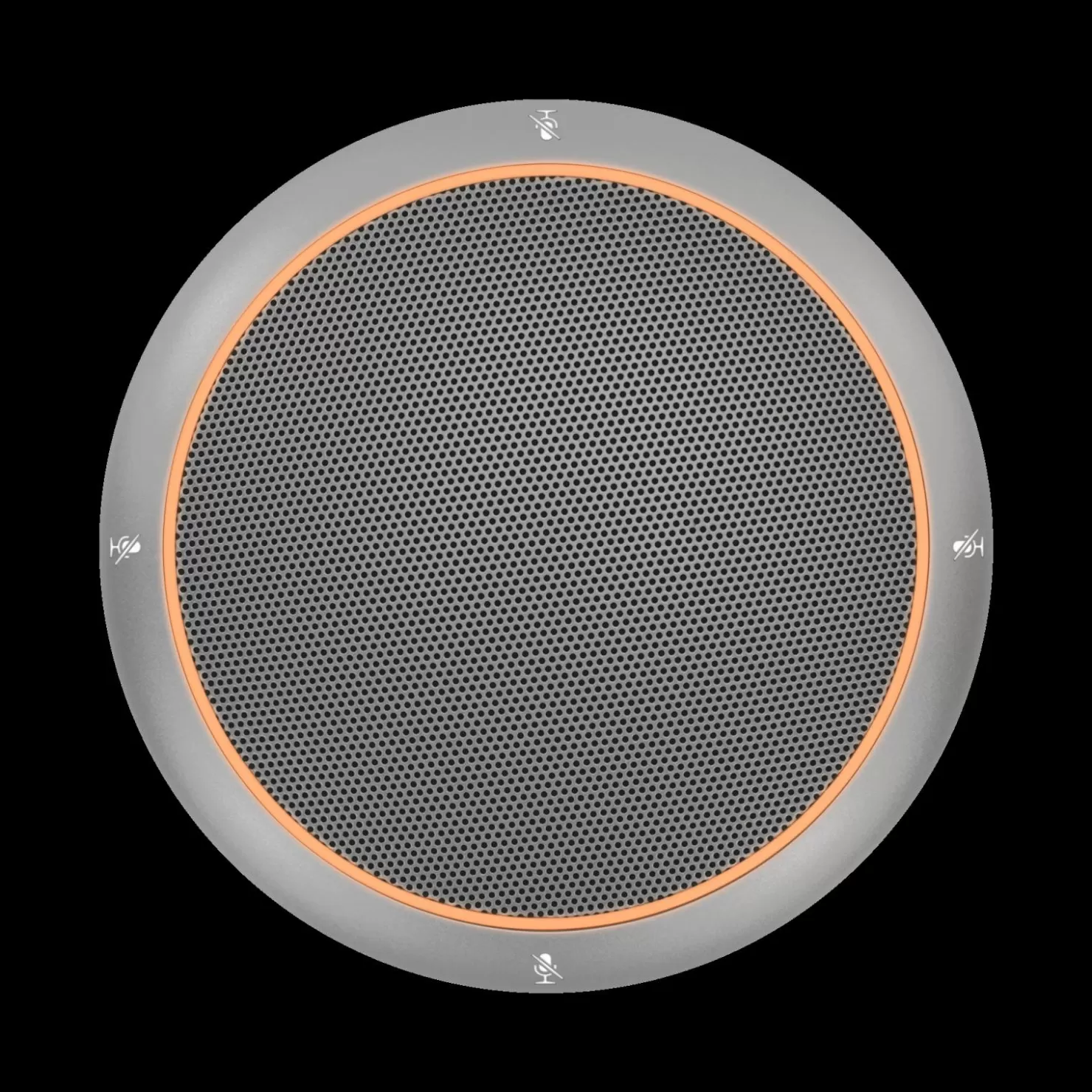

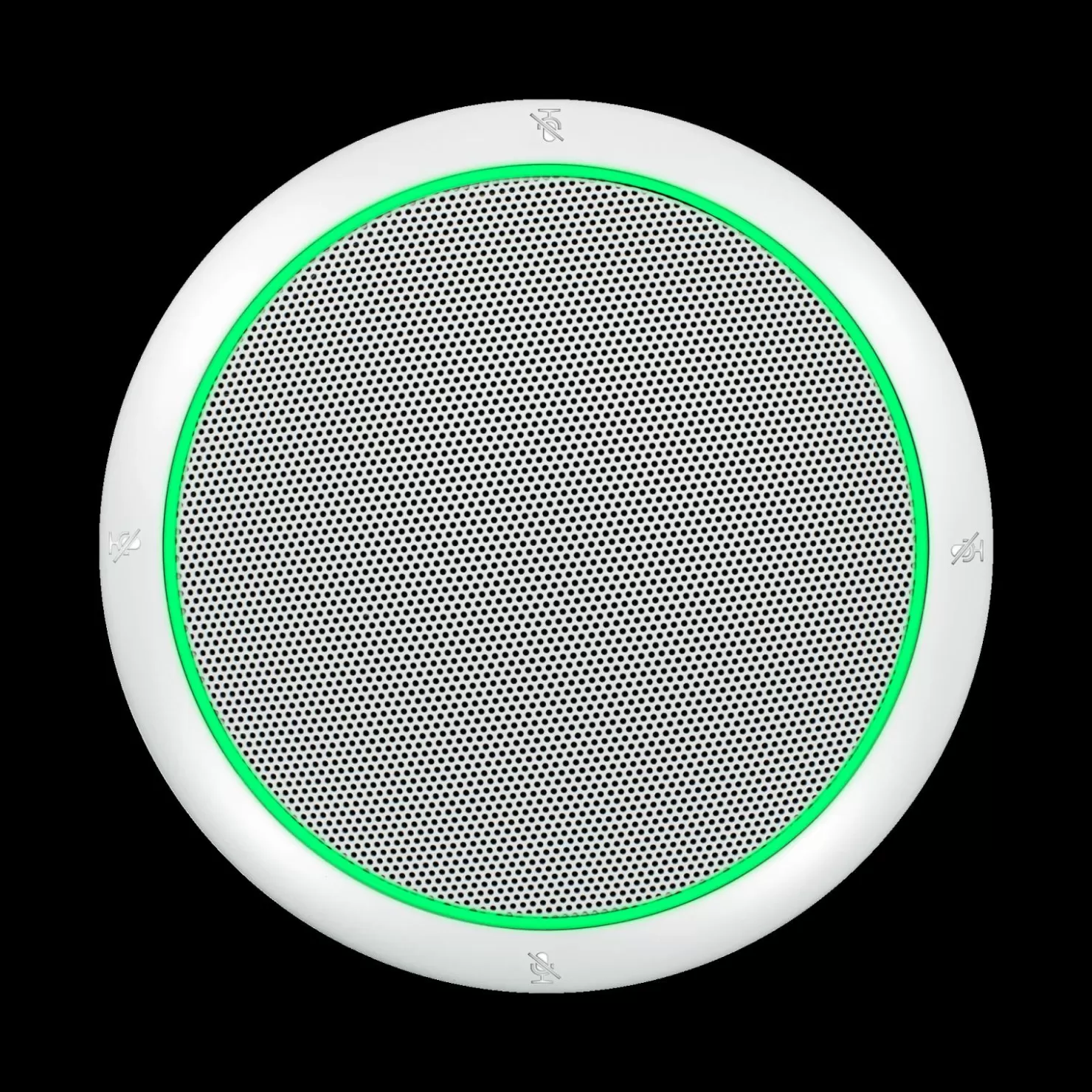

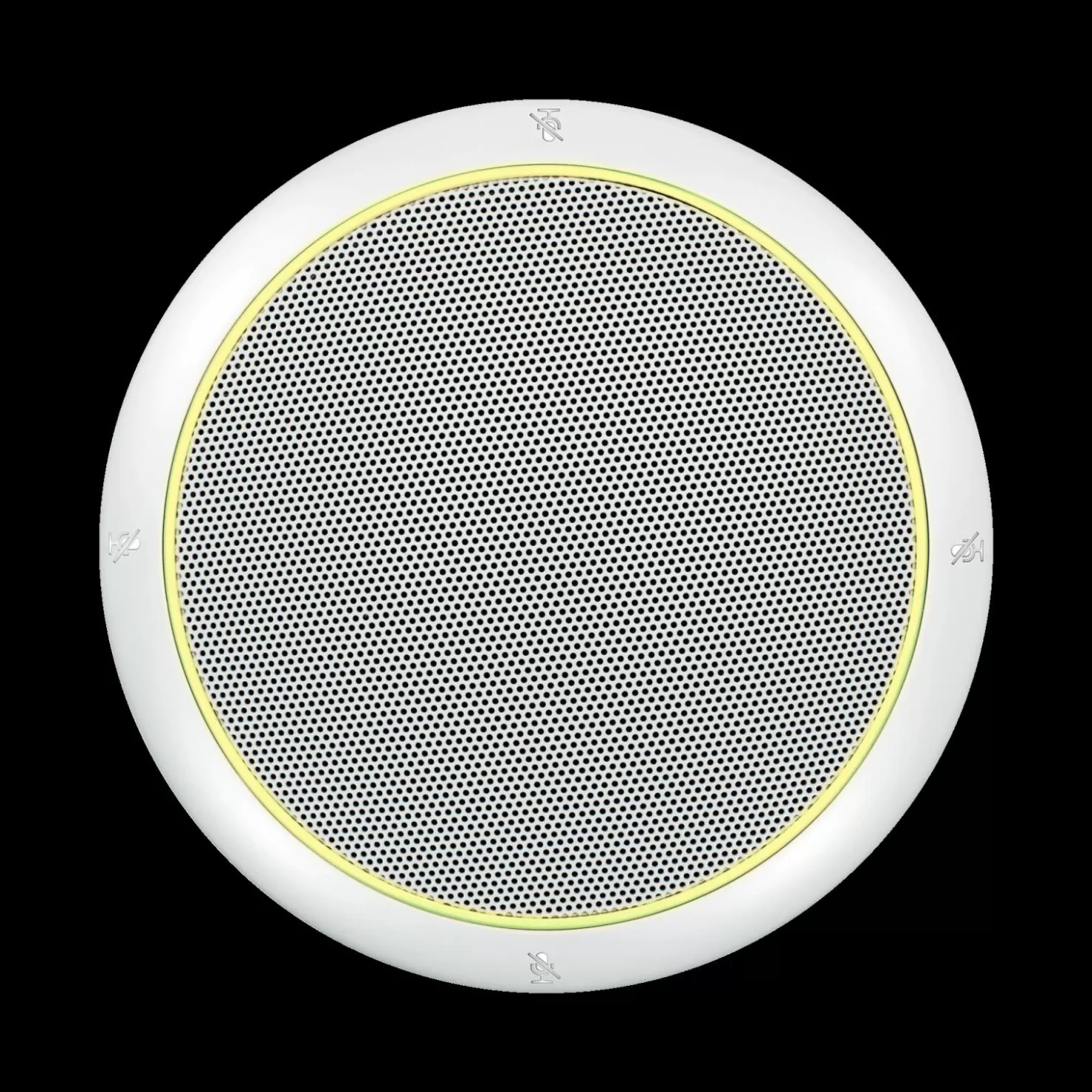

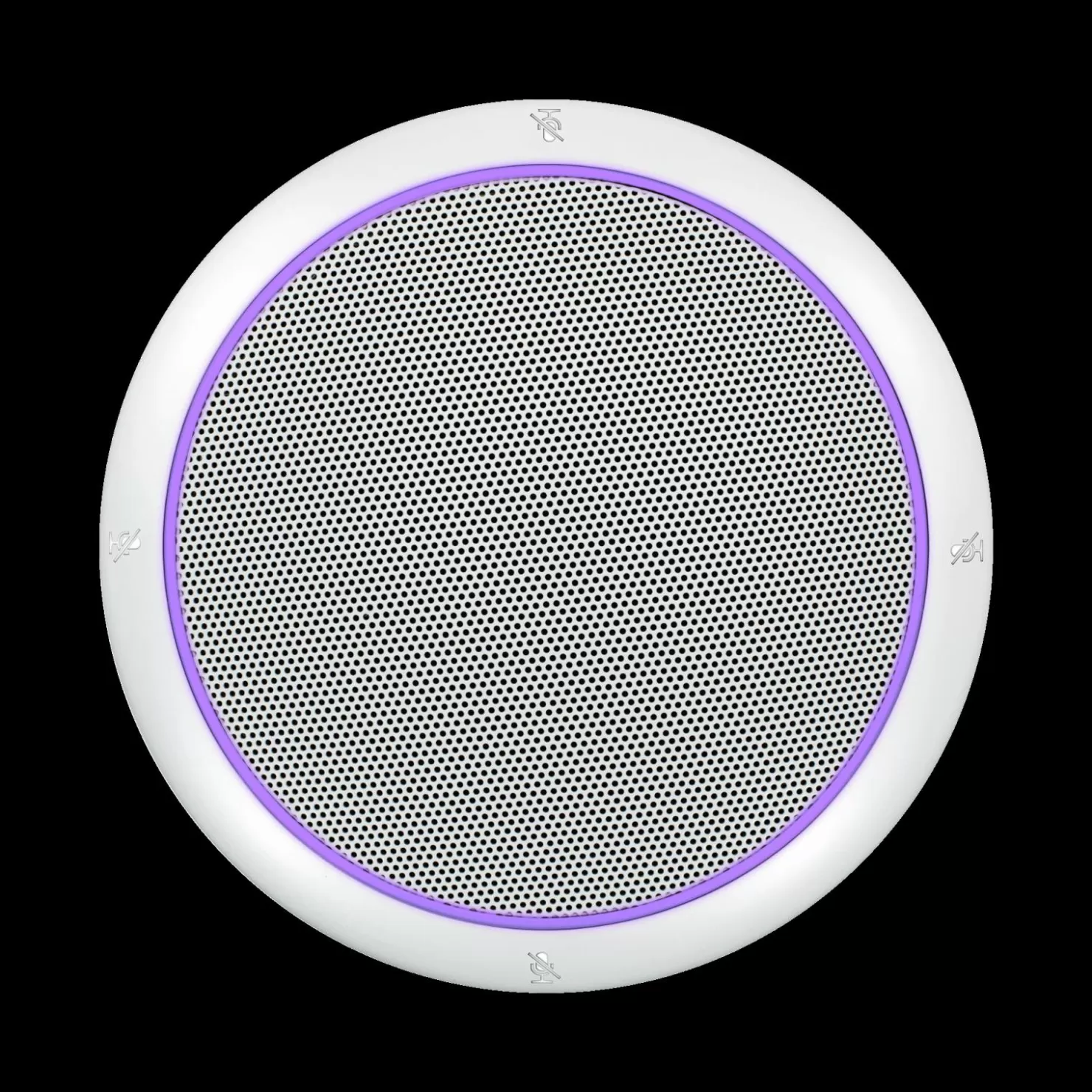

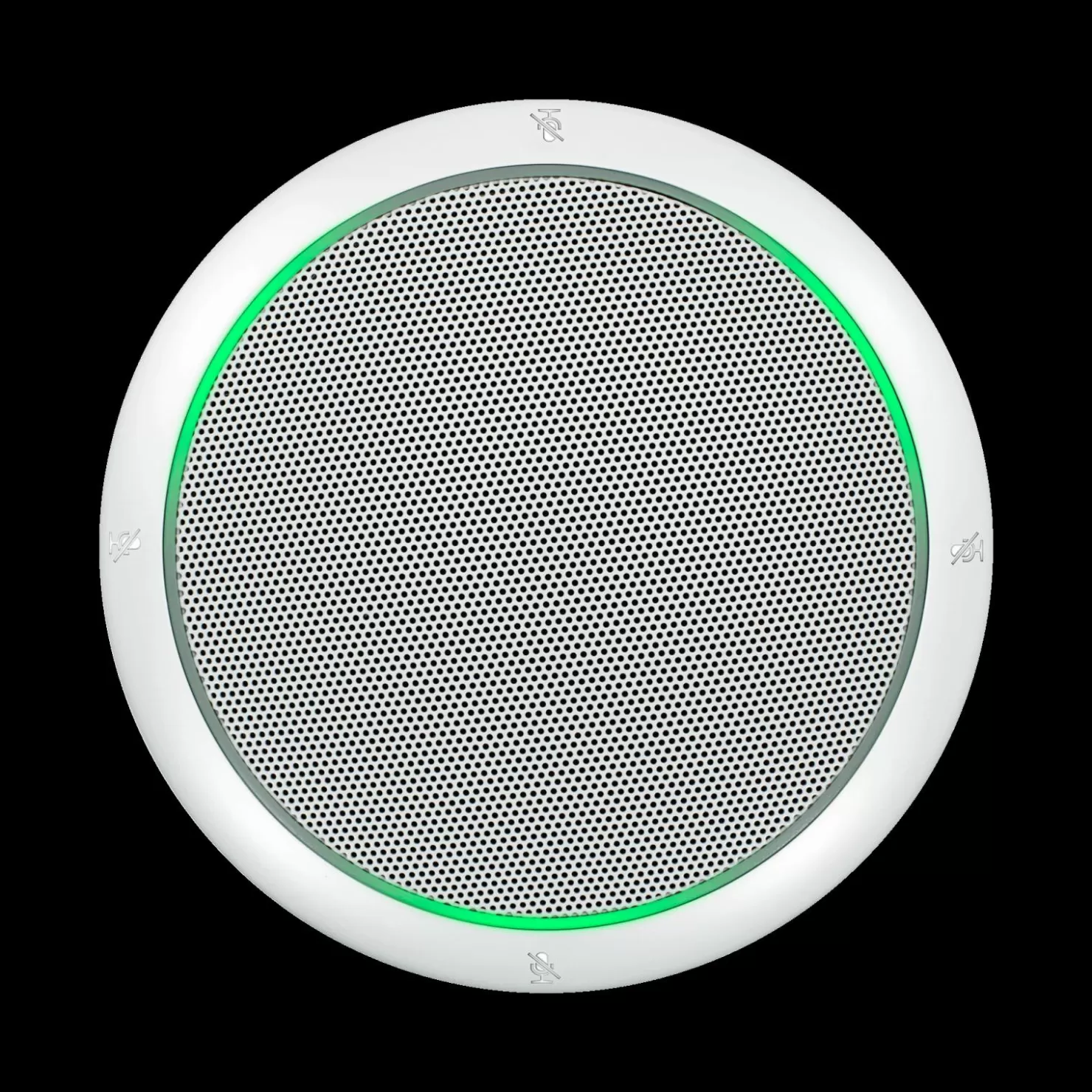

  • Displays Mute and Unmute status in Ring, Segment or Automix in two colors (available in red, orange, yellow, green, blue, purple, white, pink)
  • Brightness controls (default, dim, disabled)
• Mute Switch modes
  • Toggle, Push-to-Talk, Push-to-Mute, Disable
  • Backlit LED indicator of enabled/disabled mute switch
  • Generates external control signal to mute a downstream device or trigger camera presets

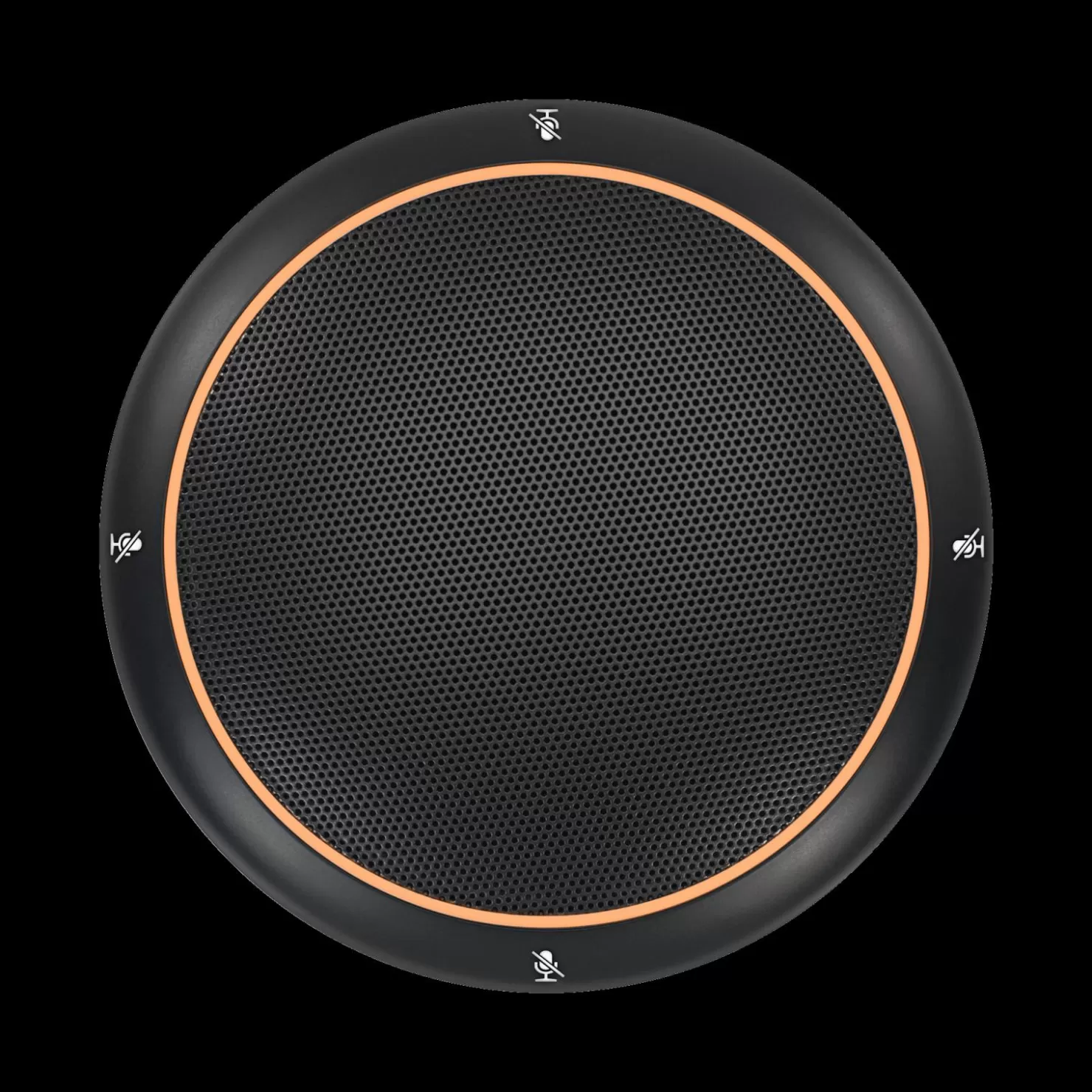

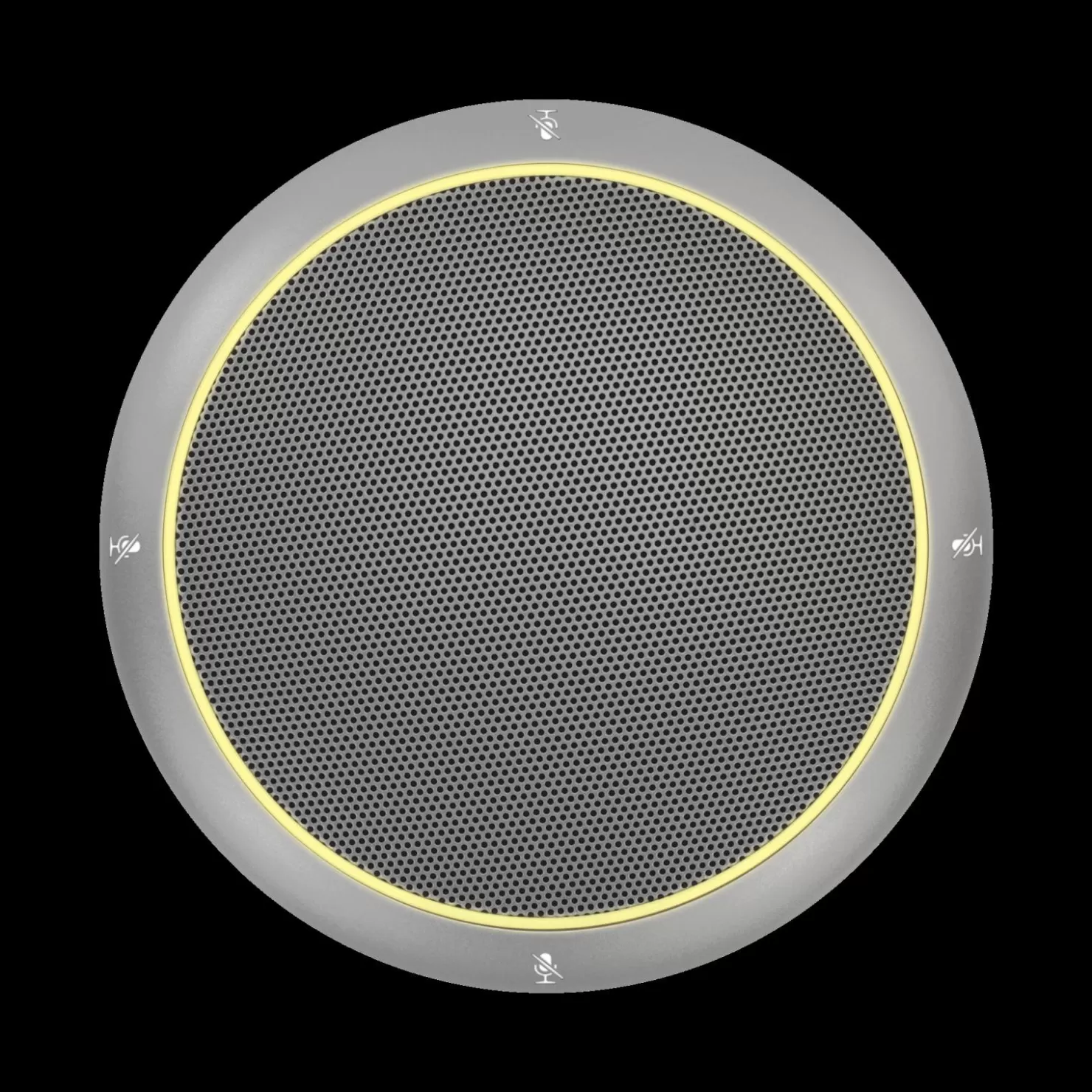

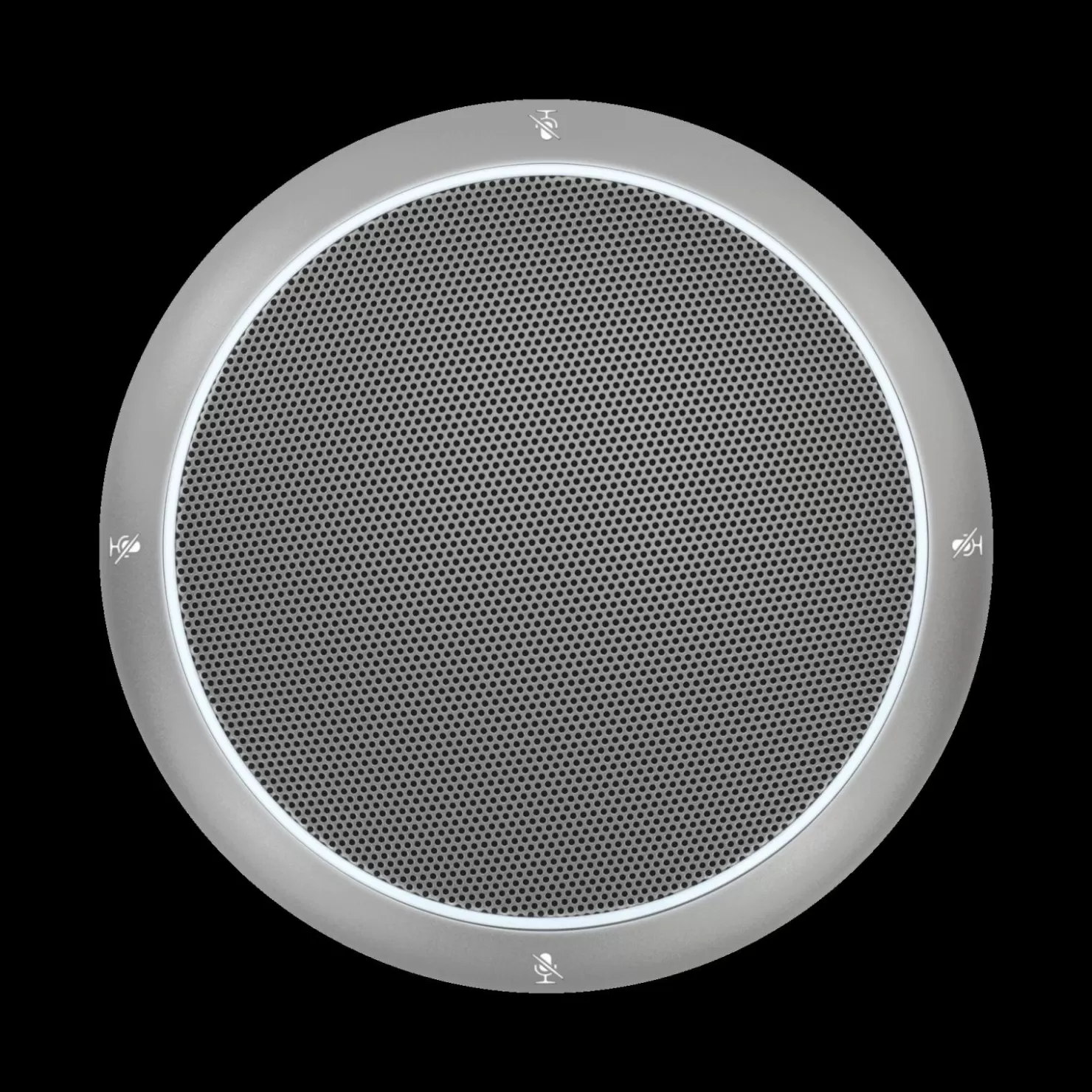

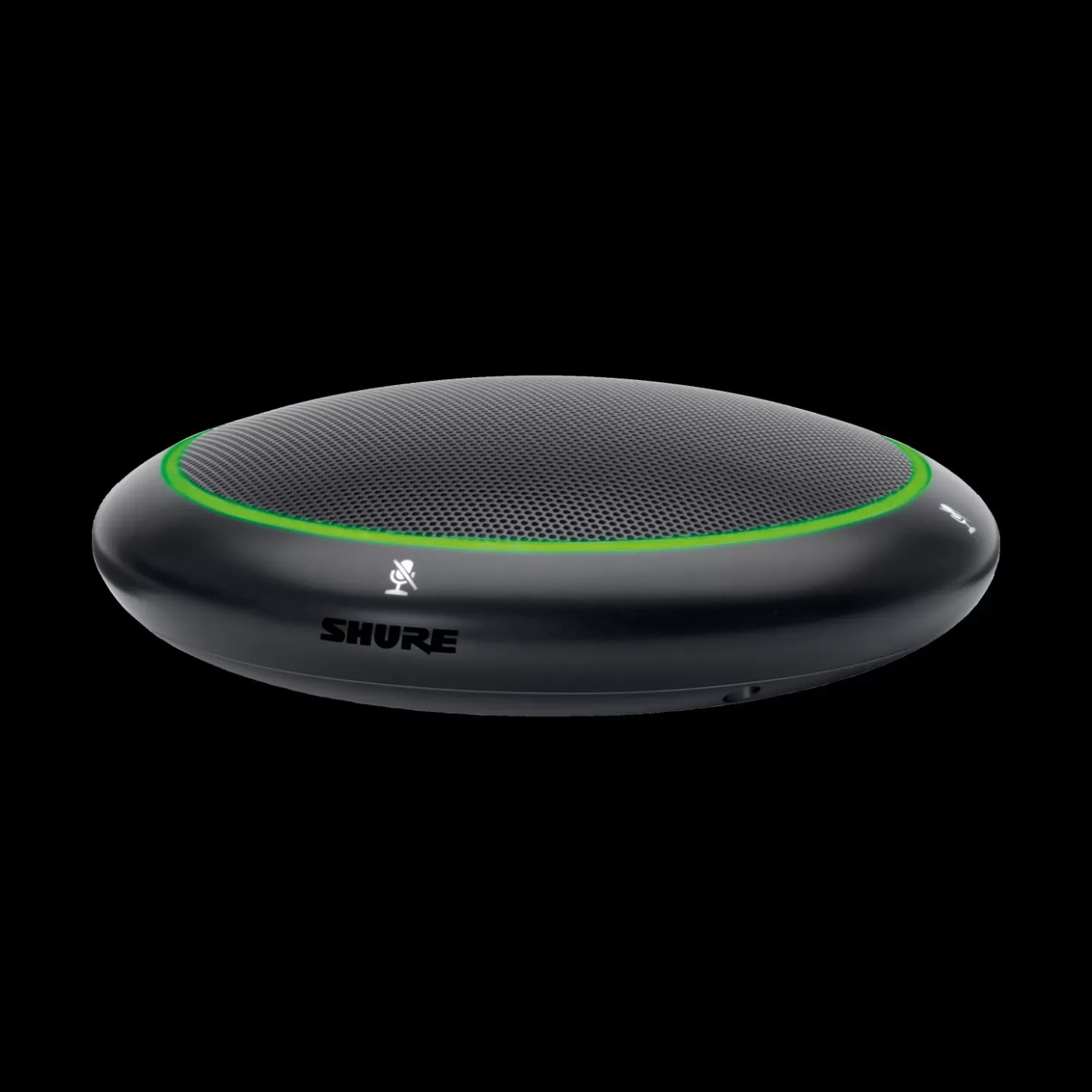

• Available in white, black and aluminum

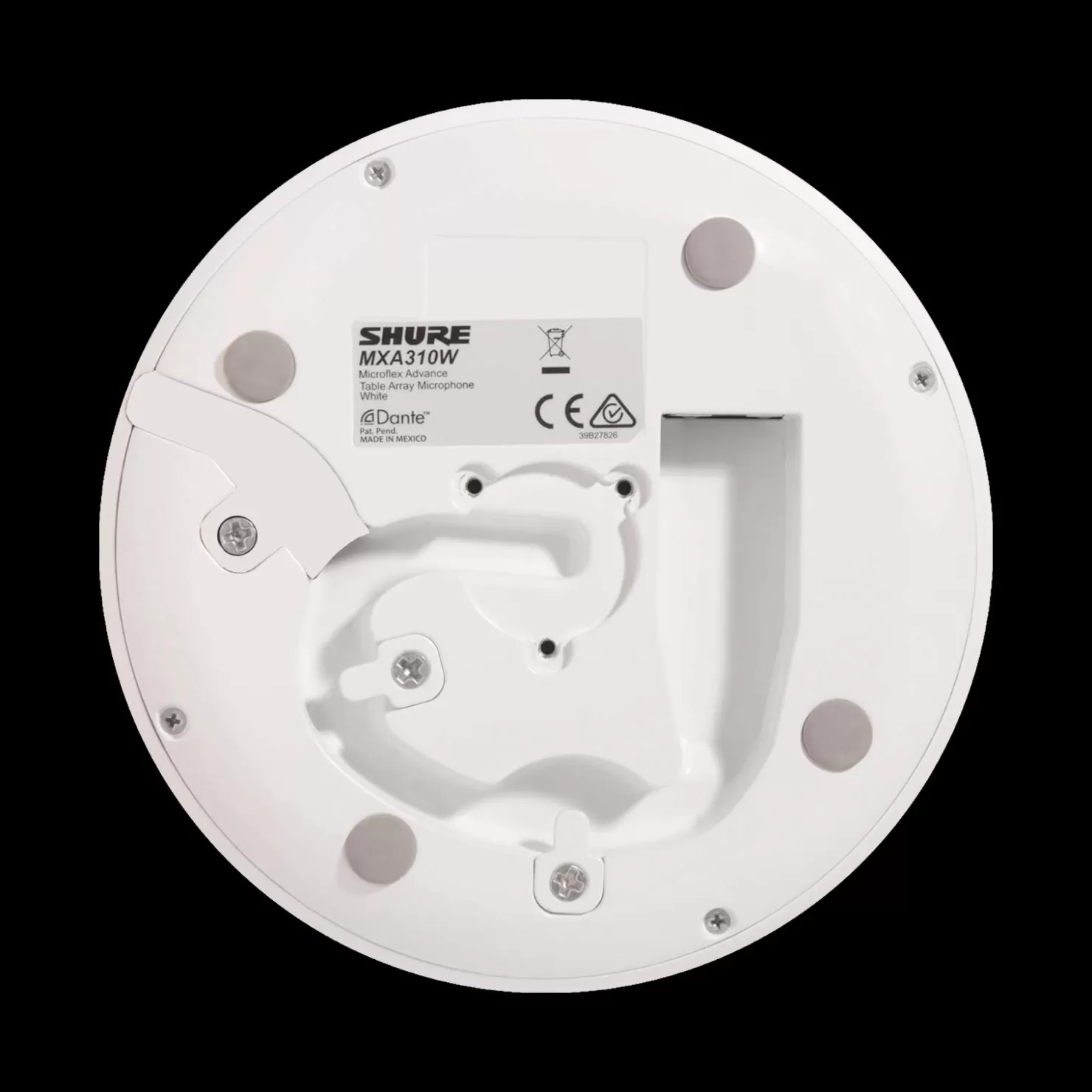

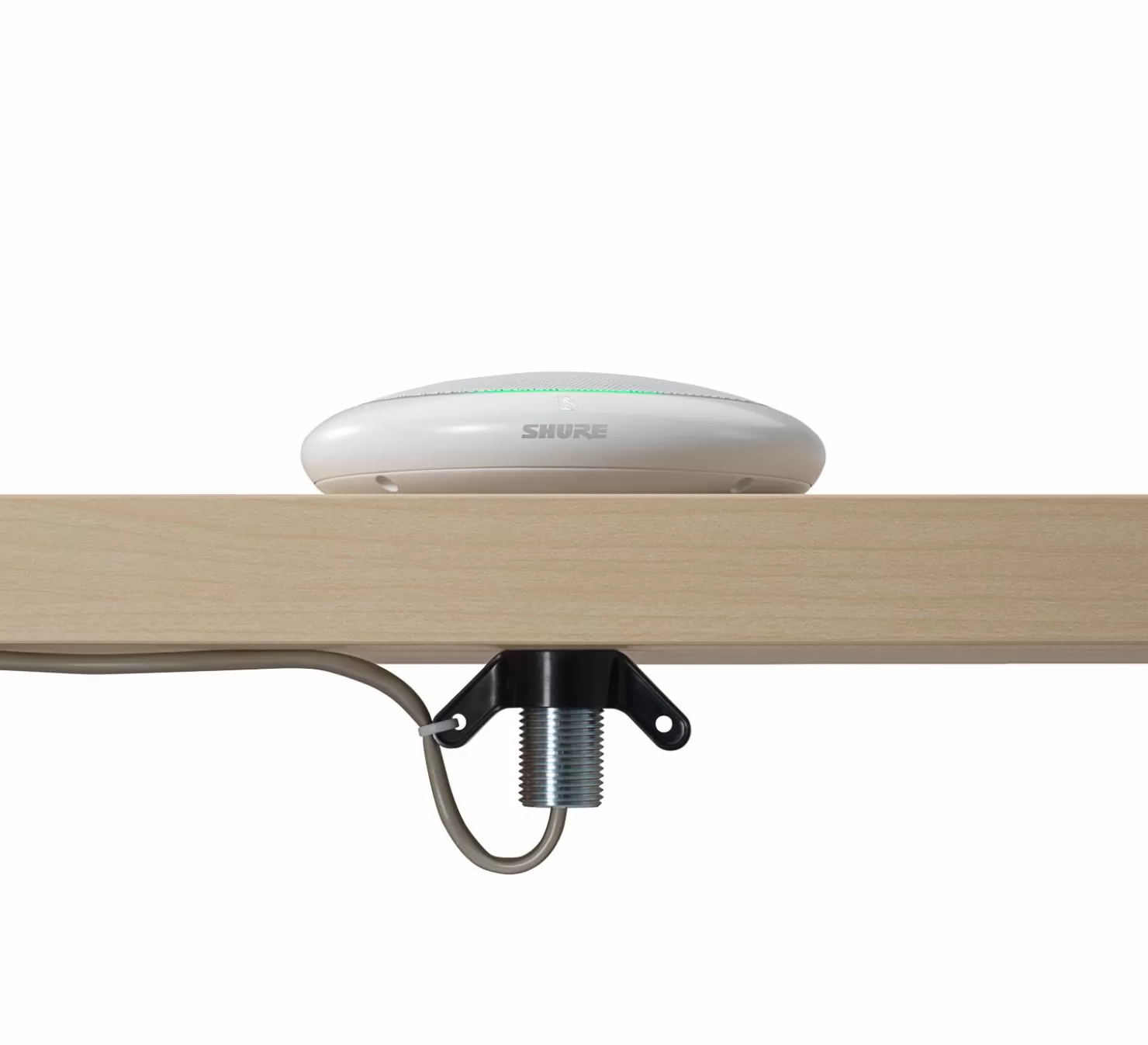

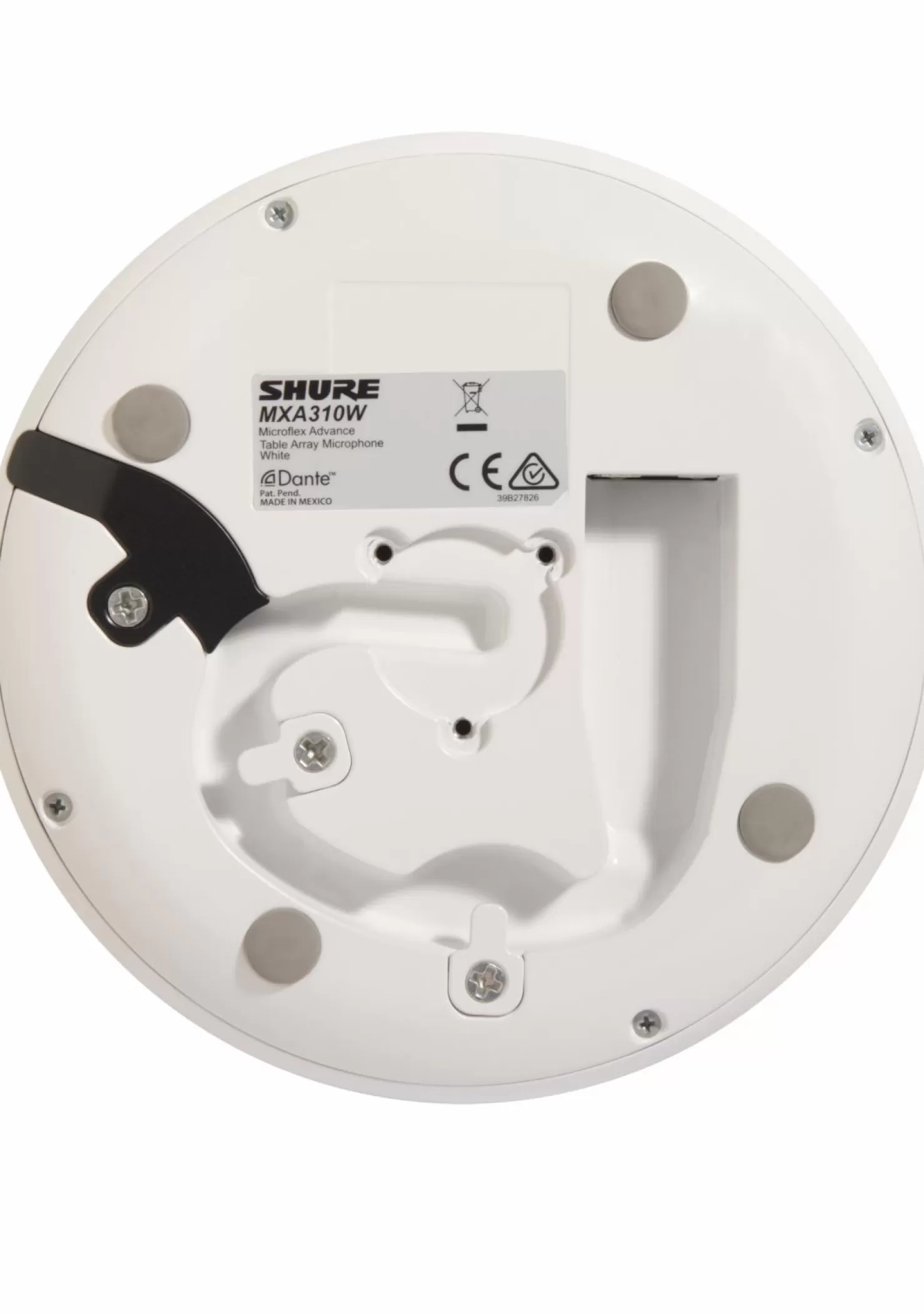

• Cable exit along or through table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations
• Device Reboot/Factory Reset Options
  • Two stage hardware reset: 4 second press resets network settings, 8 second press resets to factory default restoring all settings including device name and network details

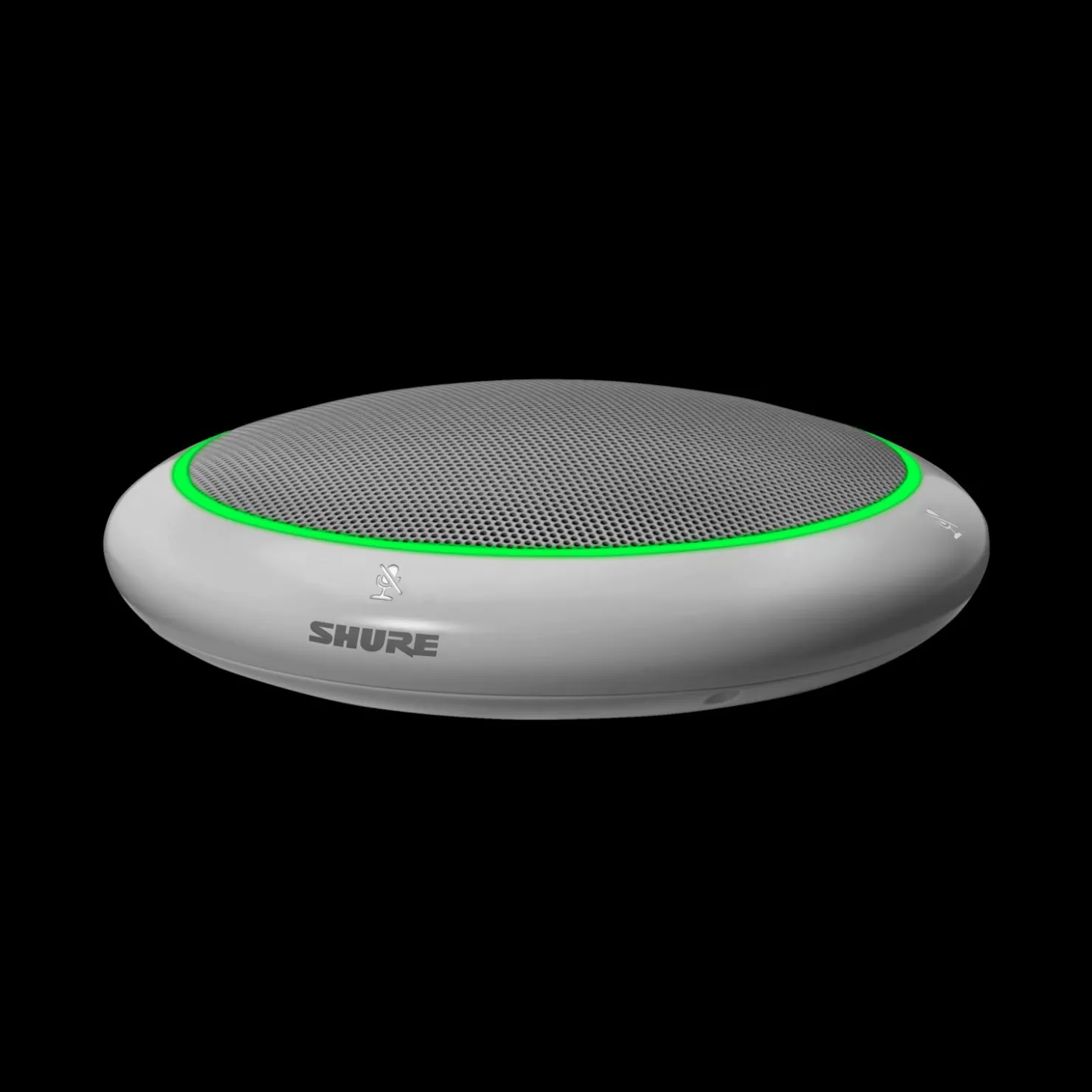

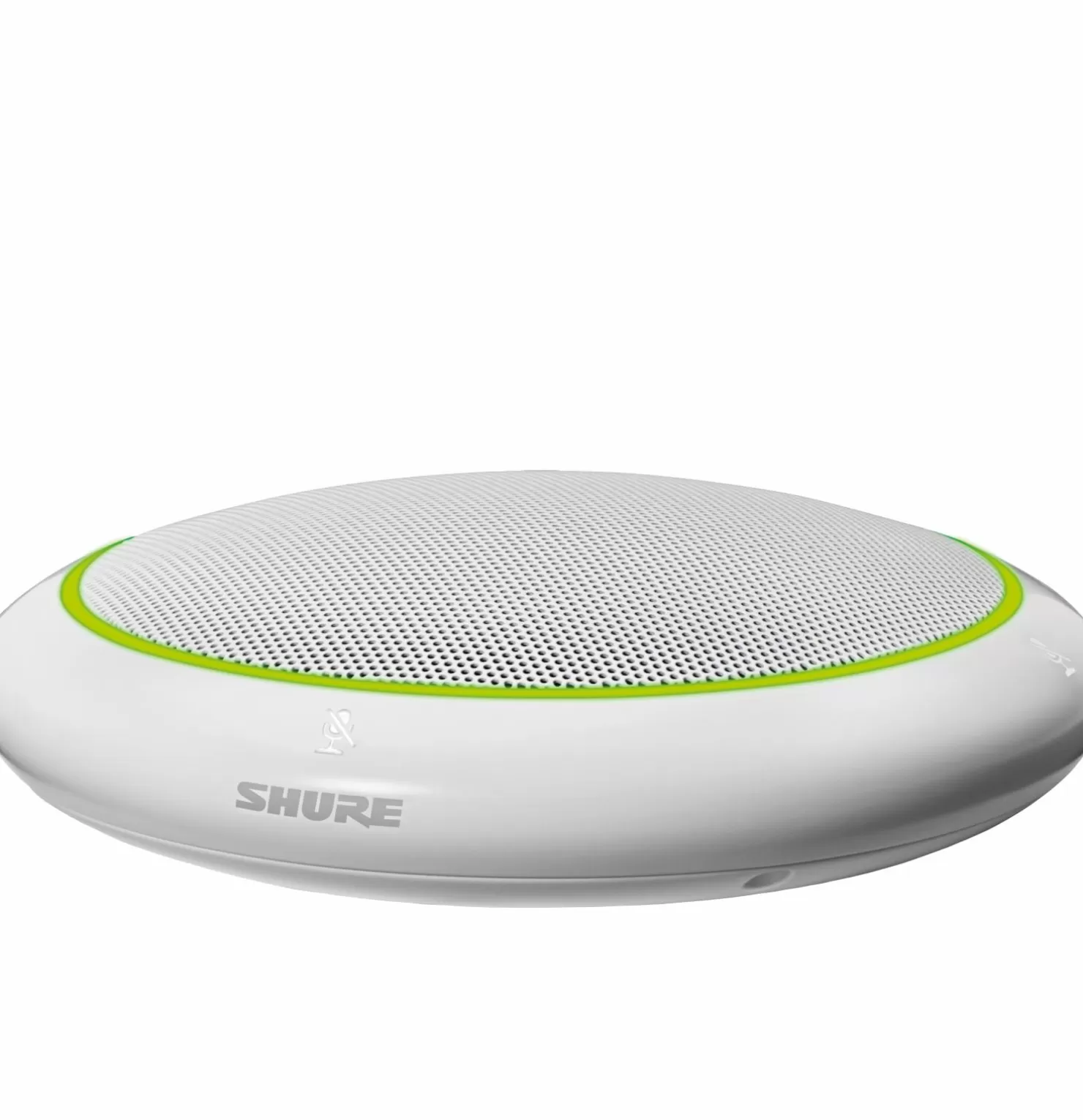

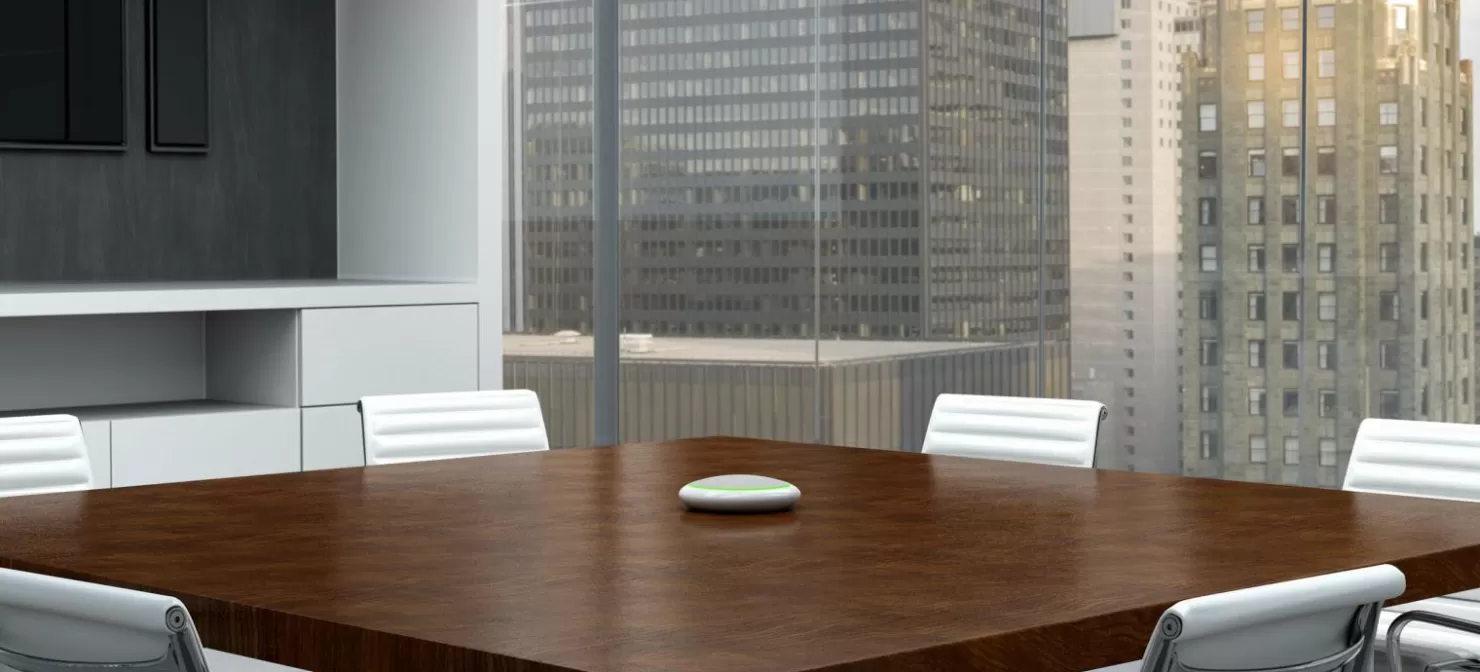

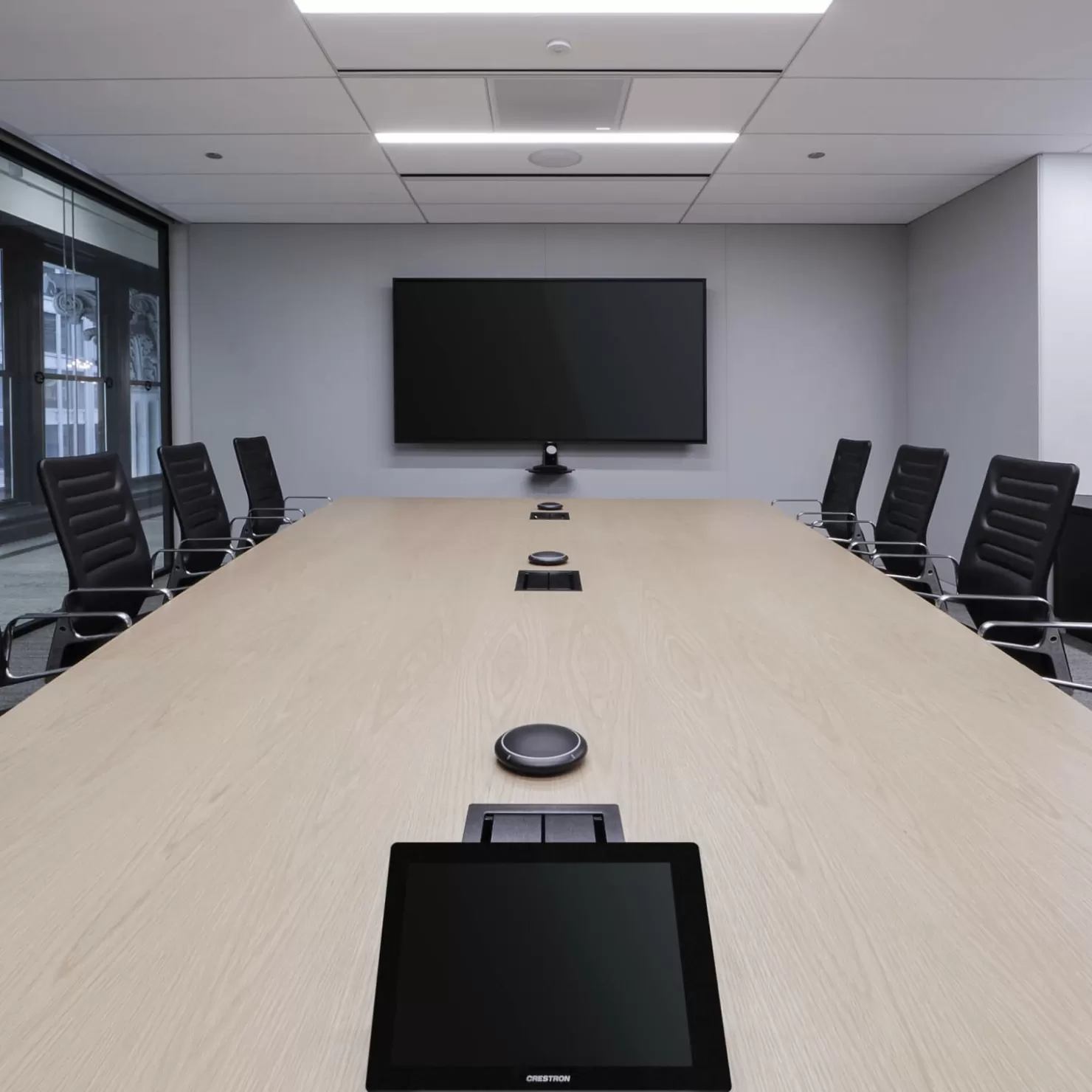

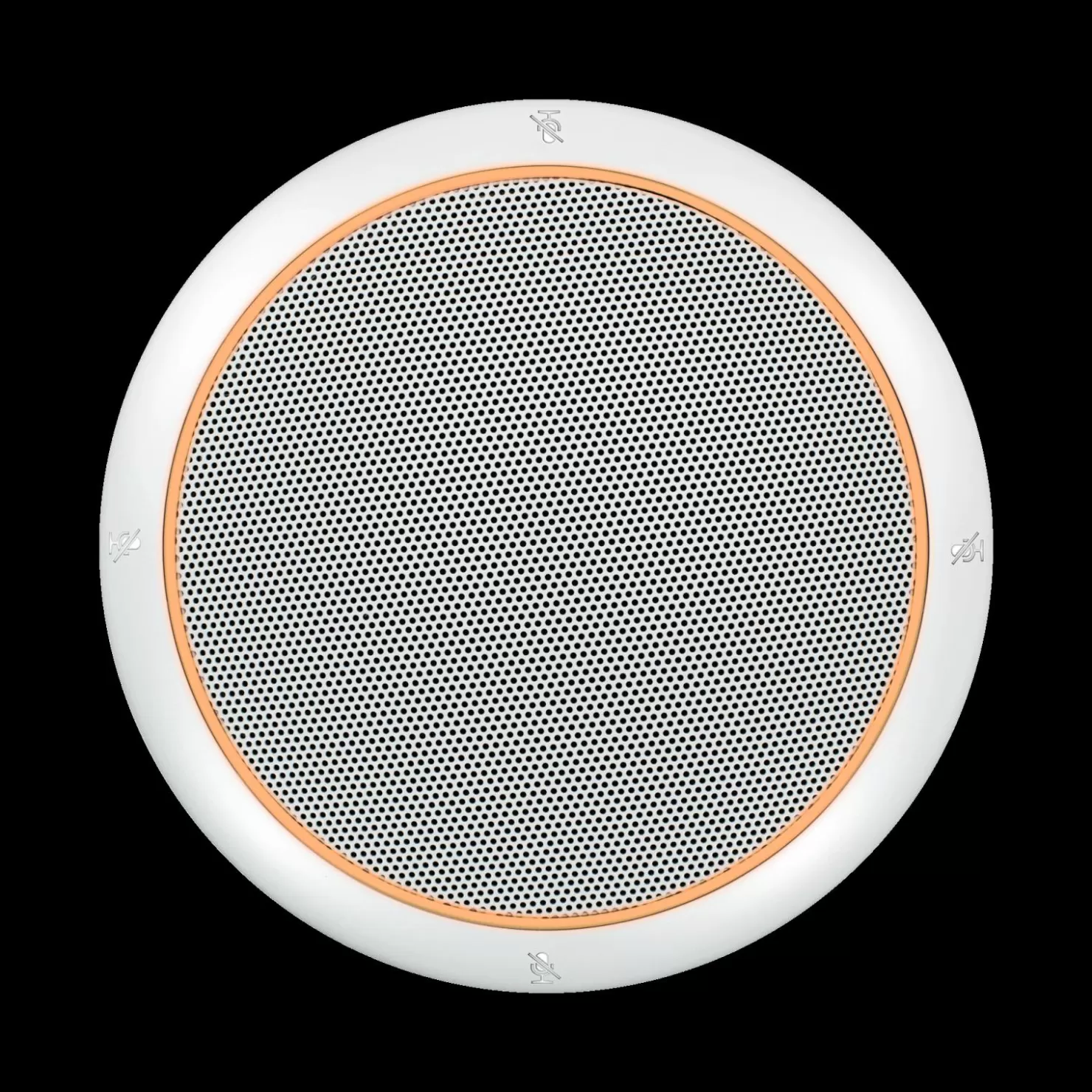

The Microflex® Advance™ Table Array is a premium networked array microphone that captures high quality audio and provides flexibility in varying A/V Conferencing environments including boardrooms, huddle rooms and multi-purpose spaces. Within the onboard Shure DSP Utilities, Shure’s proprietary Steerable Coverage™ technology deploys up to four discrete simultaneous coverage zones around a table and utilizes an innovative “toroid” ring-shaped pattern to reject unwanted artifacts from overhead such as HVAC or projector fans.

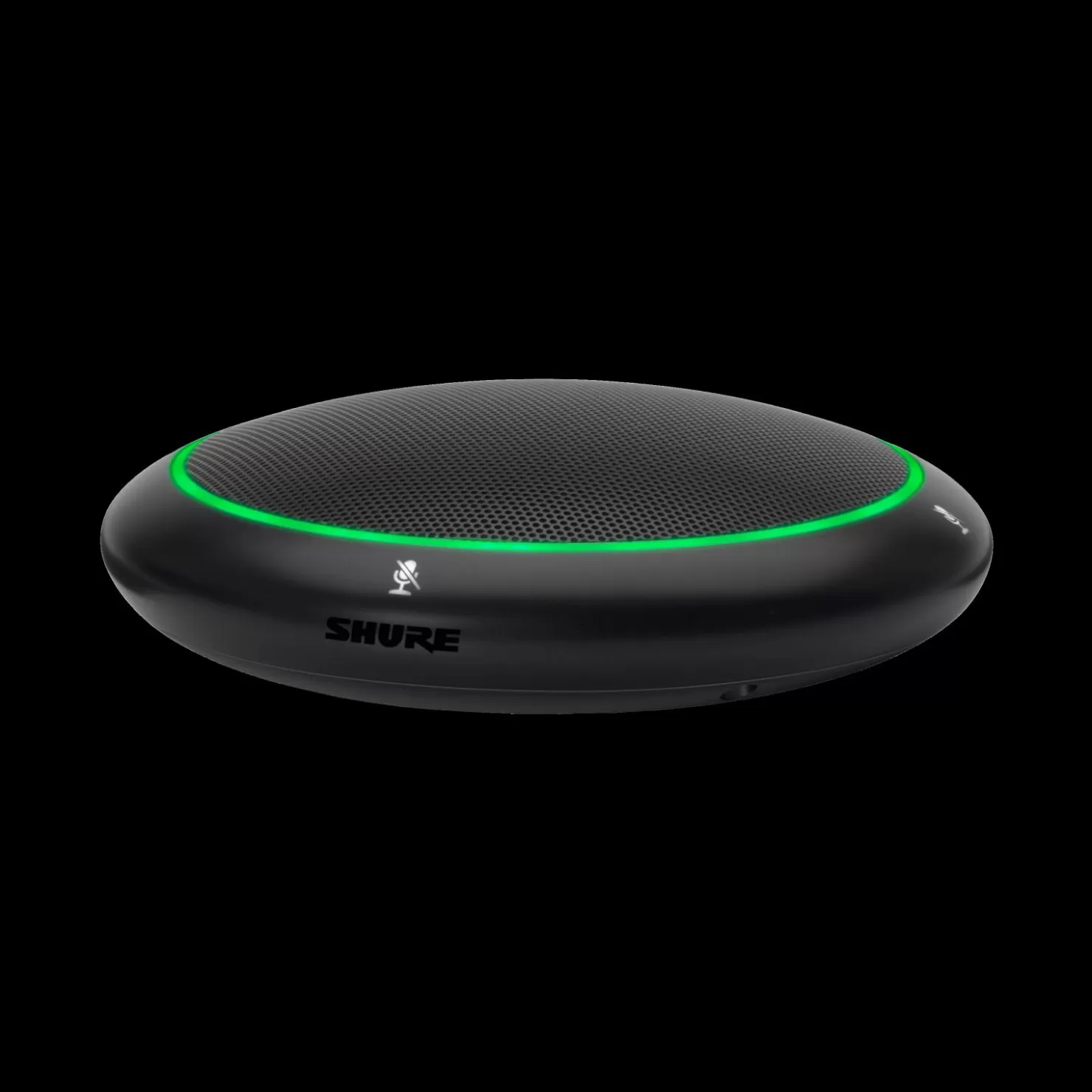

Programmable capacitive-touch mute switches ensure simple user operation. Configurable multi-colored LED light ring displays mute status and displays lighted segments during set-up to confirm coverage areas and auto mix settings. Integrates seamlessly with Dante™ Networked Audio, and third-party preset controllers including Crestron and AMX. All parameters are configured via a browser-based control software, with intuitive control of polar patterns, templates and presets for quick set up for any meeting space requirement.
